PP/PET Strapping Band Machine

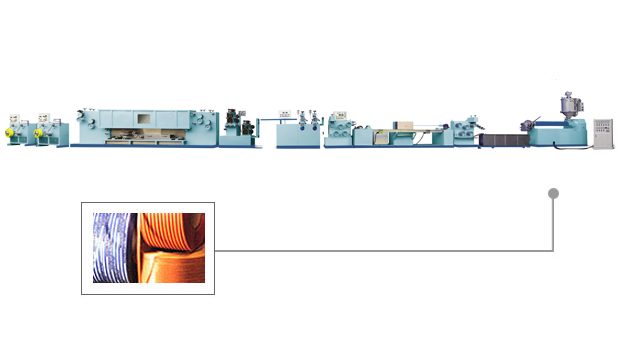

JS 237AA, JS 239AA2 PP FULLY AUTO STRAPPING BAND MAKING MACHINE

Unmatched Performance!
Two color strapping band is available.

Max. speed for each line : 145 m/min
Band width : 9, 12, 15.5 and 19 mm.
Gears are hardened and precision ground for quiet running performance.
Main bearing resists 10,500 kg/cm thrust force.
SACMI screw is nitrogen treated, precision ground, and stress relieved.
SACMI barrel is nitrogen treated, precision ground, and stress relieved.
Fully automatic screen changer or manual screen changer is available.
Two-step heating in quenching tank provides preheating function, ensuring high stretching ratio and stability.
Stretching unit is all-gear driven with oil bath lubrication for stability, quiet running and long service life.
Extremely convenient change for various widths of PP band.
The winding unit is driven by a DC torque motor.
Two-step motor starting. Motor stops automatically in the event of overload.
All stainless steel stretching rollers and take off rollers for rust-free performance.

EMBOSSING ROLLER

The embossing rollers are manufactured from SKD11 material,
vacuum heat treated for superior hardness and maximum wear resistance.
Embossing depth is pneumatically adjuisted with indication meter for accurate reading.
Separate motor drive.

STRAIGHTENING UNIT

The circulated hot air features tempering function.
Once temperature is reached, the unit stops automatically.
Equipped with a water cooling tank for upgtading cooling and stiffening performabce.

Stretching unit is all-gear driven with oil bath lubrication for stability,
quiet running and long service left.

Pringing Equipment
Provides single color
printing for company name, address and logo.

MODEL			JS 237AA	JS 239AA2
Feature	Material		PP	PP
	Qty. of Line		1	2
	Layflat Width		9 / 12 / 15.5 / 19	9 / 12 / 15.5 / 19
	Extruding Output Range	kg/hr	30 - 70	45 - 140
Extruder	Screw	mm	Ø75	Ø90
	Screw L/D		26 : 1	28 : 1
	Driving Motor	hp	VS 25	VS 50
	Heater Capacity	kw	18.7	31.5
	Automatic Thermo-Controller	set	6	10
Quenching Equipment	Stainless Quenching Bath	set	1	1
Stretching Unit No. 1	Roll Dimension	mm	Ø213 x 130 L	Ø213 x 230 L
	No. of Roll	pc	5	7
	Driving Motor	hp	1 HP (Inverter)	3 HP (Inverter)
	Speed Range	m/min	6.3 - 22	6.3 - 22
Stretching Unit No. 2	Stainless Stretching Bath	set	1	1
	Heating Capacity	kw	8	10
	Roll Dimension	mm	Ø213 x 130 L	Ø213 x 230 L
	NO. of Roll	pc	5	5
	Driving Motor	hp	5 HP (Inverter)	7 I/2 HP (Inverter)
	Speed Range	m/min	48 - 160	48 - 160
	Embossing roll	set	1	2
	DC Torque Motor	hp	3 HP x 1	3 HP x 2
Straighten Unit	Roll Dimension	mm	Ø213 x 110 L	Ø213 x 110 L
	No. of Take Up Roll	set	1	2
	DC Torque Motor	set	1 HP x 1	1 HP x 2
	Heater Capacity	kw	13.5	18
	Straighten Box	set	1	1
	Quenching Bath (Stainless Steel )	set	1	1
	Water Removal Motor	hp	1/4 HP	1/4 HP
	Air Blower For Water Removal	set	2 HP x 1	2 HP x 2
	No. of Take Up Rolls	set	1	2
	DC Torque Motor	hp	1 HP x 1	1 HP x 2
Winding Unit	DC Torque Motor	hp	1/4 HP x 2	1/4 HP x 4
	Winding Width Range	mm	190	190
	Core Bobbin	mm	Ø200	Ø200
	No. Of Spindle	pc	2	4
Others	Machine Weight	ton	7	9
	Total Electricity	kw	90	148
	Machine Dimension (LxWxH)	m	24 x 1.5 x 2.8	31 x 2 x 3.1

* All specifications and design characteristics are subject to change without prior notice.
