Straw Bending Machine

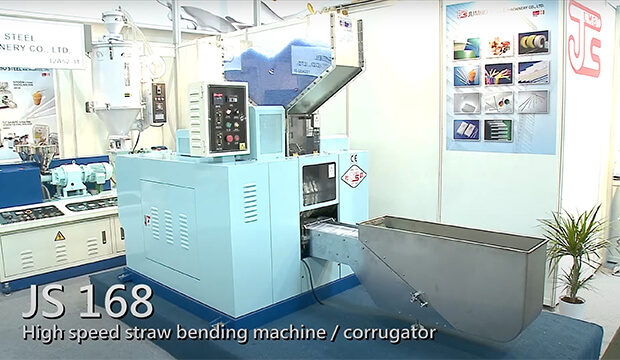

JS 168 Regular Straw Bending Machine

Straw Bending Machine JS 168


Straw Bending Machine
Model JS 165 JS 168
Material   PP, PLA, PHA, and etc...
Maximum Speed pcs/min 700 1000
Product Inner Diameter mm Ø3.8 Ø4.8, Ø5.66, Ø6.0, Ø7.0,Ø7.66 Ø5.66, Ø6.0, Ø7.0,Ø7.66
Straw Length mm 200 - 250
Straw Thickness mm 0.16 - 0.18
Front-Section Length of Flexible Straw mm 50
Folded Patterns sections 10
Length of Completed Drinking Straw mm 190 - 240

* Select one diameter for each machine only
* Each machine is set to one diameter.
* The speed of the machines relies on both the measurements of the straw and the type of material used for the straw.
* For Tetra Pak/Combibloc straws with an inner diameter of 3.8mm and an outer diameter of 4.2mm.
