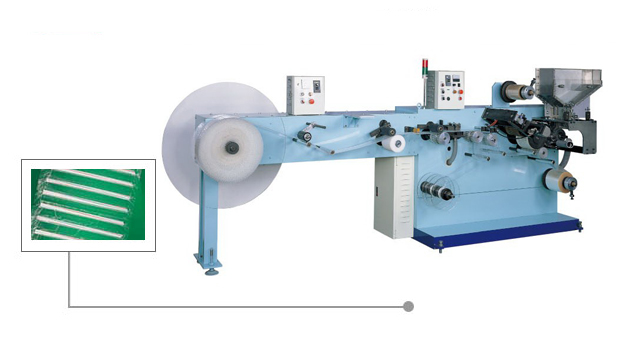

JS 602
FEATURES :
- The machine can perform sharp end cutting on the straws, ensuring all sharp ends are packing in the same direction.
- All machine speeds are variable.
- High production rate of 500-800 pcs/min.
- Automatic machine stop in the event of strew jamming.
- Automatic product counting. Product quantity preset. Once the present value is reached, the alarm will sound.
- All rollers are manufactured from aluminum.
- Suction device for sharp end waste.
- The machine is easy to operate with minimum trouble.
SYNCHRONIZED PUNCHING SPEED
The punching speed is synchronized with strawfeed speed to ensure accurate cutting.
(For easy tear)
The punching speed is synchronized with strawfeed speed to ensure accurate cutting.
(For easy tear)
SPECIFICATIONS :
| MODEL | JS 602 |
|---|---|
| Straw Size | 3.8 mm (dia.) x 120 mm |
| Packing Material | OPP film x 165 mm width |
| Wrapped Straw Length | 120 mm |
| Speed | 450 - 600 pcs/min |
| Pitch Between Two Straws | 15.7 mm |
| Unwind Paper Core | 3" dia |
| Driving Motor | 2 HP x 4P + Invertor |
| Air Blower | 1/2 HP |
| Sharp End Cutting Unit | - |
| Waste Suction Device | - |
| FORMING UNIT | |
| Copper Forming Pressure Roller | 1 set (28 cavities) |
| Heater | 1450 W |
| Temperature Controller | 1 set |
| Film Take Up Roller With Vacuum | 1 set (42 cavities) |
| (Material : silicon) | |
| Air Cylinder | 4.8 mm (dia.) x 8 x 2 pcs |
| Punching Unit | 1 set |
| Motor For Winding | 60 W |
| Auto Counter | 1 set |
| Emergency Stop | 1 pc |
| Total Electricity | 4.1 KW |
| Machine Dimension | 4000 x 1000 x 1650 mm |
| Machine Weight | 1600 kgs |
* All specifications and design characteristics are subject to change without prior notice.
